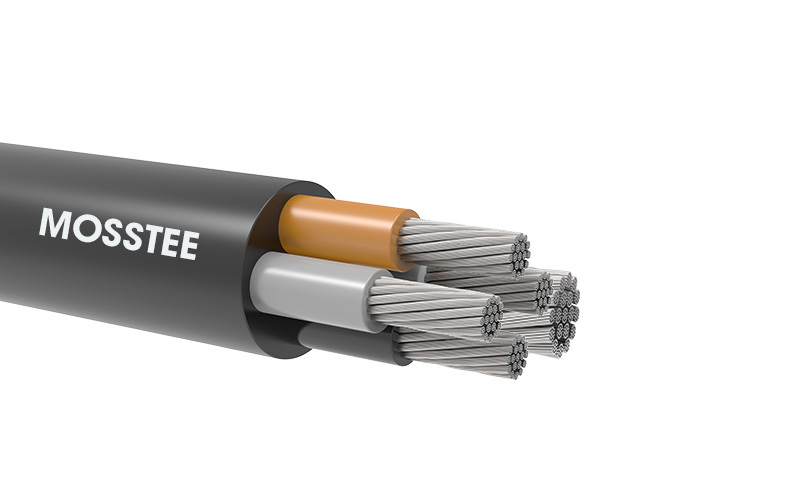

A03VV-AF

1.Flexible Aluminum Conductor (Class 5) 2.PVC (Polyvinyl Chloride) Insulation 3.PVC

Category:

EN/VDE standard

hbwong@mosstee.com

Inquire Now
Related Product

Product Introduction

Description:

1.Flexible Aluminum Conductor (Class 5)
2.PVC (Polyvinyl Chloride) Insulation
3.PVC



Technical Data:

Max. Operating Temperature: 70°C
Short Circuit Temperature: 160 °C (max. 5s)
Bending Radius: 6D
Test Voltage: 1.5 kV
Voltage Rating: 300/300 V



Code:

A03VV-AF



Construction:

Sheath: PVC
Armor: /
Filler: /
Insulation: PVC (Polyvinyl Chloride)
Conductor: Flexible Aluminum Conductor (Class 5)



Standards:

EN 50525-2-11, VDE 0281, IEC 60227, BS 6500, IEC 60228, IEC 60332-1



Application:

It is used in closed and dry places where there is little mechanical stress, in household appliances, in steamy and humid places.



Technical Parameters

Nominal Cross
Section

Overall
Diameter

Net
Weight

Delivery
Length

Resistance
at 20°C

Current
Carrying Capacity

(mm²)

(mm)

(kg/km)

(m)

(ohm/km)

In Ground at 20°C

In Air at 30°C

2x0.5

5.1

37

100

56.10

-



2x0.75

5.5

48

100

37.40

-



3x0.5

5.4

47

100

56.10

-



3x0.75

5.8

56

100

37.40

-



4x0.5

5.9

60

100

56.14

-



4x0.75

6.4

72

100

37.40

-
