A07V-AK
Classification:
Product Description
Description:

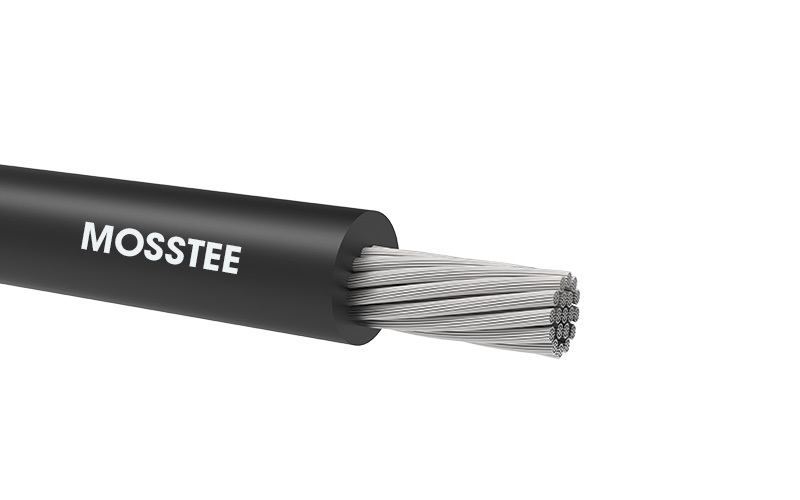

1.Flexible Aluminum Conductor (Class 5)
2.PVC (Polyvinyl Chloride) Insulation
Technical Data:
Max. Operating Temperature: 70°C
Short Circuit Temperature: 160 °C (max. 5s)
Bending Radius: 6D
Test Voltage: 2.5 kV
Voltage Rating: 450/750 V
Code:
A07V-AK
Construction:
Sheath: /
Armor: /
Filler: /
Insulation: PVC (Polyvinyl Chloride)
Conductor: Flexible Aluminum Conductor (Class 5)
Standards:
EN 50525-2-31, VDE 0281, IEC 60227, BS 6004, IEC 60228, IEC 60332-1
Application:
It is used in the connections of mobile devices, distribution panels, dry or closed places, in pipes under plaster or on plaster.
Technical Parameters
|
Nominal Cross |
Overall |
Net |
Delivery |
Resistance |
Current |
|
|
(mm²) |
(mm) |
(kg/km) |
(m) |
(ohm/km) |
In Ground at 20°C |
In Air at 30°C |
|
1x1.5 |
2.9 |
13 |
100 |
21.10 |
|
|
|
1x2.5 |
3.6 |
20 |
100 |
12.63 |
|
|
|
1x4 |
4.2 |
27 |
100 |
7.21 |
|
|
|
1x6 |
4.7 |
34 |
100 |
5.15 |
|
|
|
1x10 |
6.2 |
60 |
100 |
3.08 |
|
|
|
1x16 |
7.0 |
77 |
100 |
1.91 |
|
|
|
1x25 |
9.1 |
128 |
1000 |
1.20 |
|
|
|
1x35 |
10.1 |
159 |
1000 |
0.868 |
|
|
|
1x50 |
11.5 |
206 |
1000 |
0.641 |
|
|
|
1x70 |
13.3 |
277 |
1000 |
0.443 |
|
|
|
1x95 |
15.6 |
381 |
1000 |
0.320 |
|
|
|
1x120 |
17.3 |
466 |
1000 |
0.253 |
|
|
|
1x150 |
19.0 |
564 |
1000 |
0.206 |
|
|
|
1x185 |
21.3 |
703 |
1000 |
0.164 |
|
|
|
1x240 |
24.3 |
921 |
1000 |
0.125 |
|
|
|
1x300 |
26.9 |
1128 |
1000 |
0.100 |
|
|
|
1x400 |
30.4 |
1439 |
1000 |
0.0778 |
|
|
|
1x500 |
34.6 |
1868 |
1000 |
0.0605 |
|
|
|
1x630 |
37.9 |
2250 |
500 |
0.0469 |
|
|
