H07BQ-AF

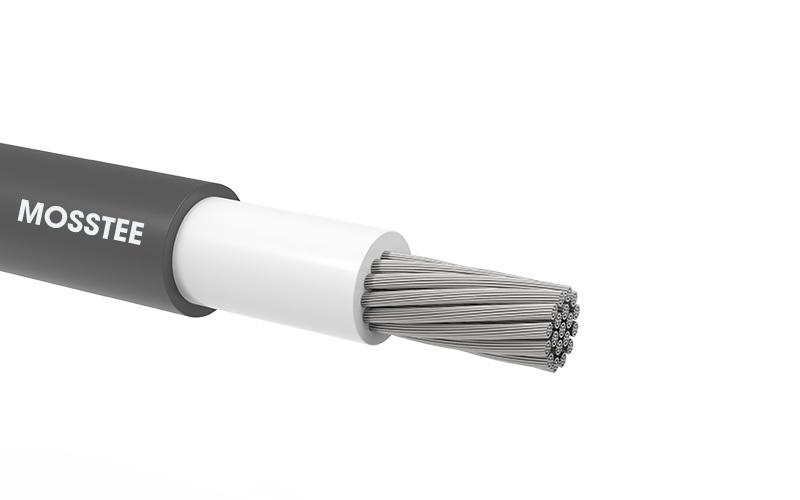

1.Flexible Aluminum Conductor (Class 5) 2.EPR (Cross Linked Rubber) Insulation 3.TPU Sheath

Classification:

EN/VDE standard

Description:

1.Flexible Aluminum Conductor (Class 5)
2.EPR (Cross Linked Rubber) Insulation
3.TPU Sheath

Technical Data:

Max. Operating Temperature: -40°C – 90°C
Short Circuit Temperature: 250 °C (max. 5s)
Bending Radius: 6D
Test Voltage: 2.5 kV
Voltage Rating: 450/750 V

Code:

H07BQ-AF

Construction:

Sheath: TPU
Armor: /
Filler: /
Insulation: EPR (Cross Linked Rubber)
Conductor: Flexible Aluminum Conductor (Class 5)

Standards:

EN 50525-2-21, IEC 60228, IEC 60332-1

Application:

It is used in shipyards, agricultural workplaces, cold storages, kitchens, in the connections of fixed or portable equipment that requires extra flexibility.

Technical Parameters

Nominal Cross Section	Overall Diameter	Net Weight	Delivery Length	Resistance at 20°C	Current Carrying Capacity
(mm²)	(mm)	(kg/km)	(m)	(ohm/km)	In Ground at 20°C	In Air at 30°C
1x1.5	6.2	36	1000	21.10
1x2.5	6.9	44	1000	12.63
1x4	7.9	59	1000	7.21
1x6	8.6	71	1000	5.15
1x10	10.5	109	1000	3.08
1x16	11.5	134	1000	1.91
1x25	13.8	196	1000	1.20
1x35	15.2	244	1000	0.868
1x50	16.9	307	1000	0.641
1x70	19.1	403	1000	0.443
1x95	21.8	531	1000	0.320
1x120	23.7	645	1000	0.253
1x150	25.8	767	1000	0.206
1x185	28.5	934	1000	0.164
1x240	31.7	1177	1000	0.125
1x300	34.7	1405	500	0.100
1x400	38.4	1757	500	0.0778
1x500	43.3	2235	250	0.0605
2x1	9.0	75	1000	28.10
2x1.5	9.8	90	1000	21.10
2x2.5	11.5	124	1000	12.63
2x4	13.4	170	1000	7.21
2x6	14.7	208	1000	5.15
2x10	20.0	389	1000	3.08
2x16	22.1	479	1000	1.91
2x25	26.7	711	1000	1.20
2x35	29.2	858	1000	0.868
2x50	32.9	1088	1000	0.641
2x70	37.3	1423	1000	0.443
2x95	42.7	1878	1000	0.320
3x1	9.7	87	1000	28.10
3x1.5	10.6	104	1000	21.10
3x2.5	12.4	143	1000	12.63
3x4	14.4	196	1000	7.21
3x6	15.8	241	1000	5.15
3x10	21.5	454	1000	3.08
3x16	23.7	559	1000	1.91
3x25	28.7	833	1000	1.20
3x35	31.5	1020	1000	0.868
3x50	35.4	1289	1000	0.641
3x70	39.9	1673	1000	0.443
3x95	45.9	2228	500	0.320
3x120	50.1	2685	500	0.253
3x150	54.6	3199	500	0.206
3x185	59.6	3905	250	0.164
3x240	67.6	5051	250	0.125
3x300	75.1	6133	250	0.100
3x95+50	47.9	2460	500	0.320 - 0.641
4x1	10.8	106	1000	28.10
4x1.5	11.7	126	1000	21.10
4x2.5	13.6	174	1000	12.63
4x4	15.8	239	1000	7.21
4x6	17.6	299	1000	5.15
4x10	23.5	544	1000	3.08
4x16	25.9	673	1000	1.91
4x25	31.8	1032	1000	1.20
4x35	34.9	1262	1000	0.868
4x50	39.2	1591	1000	0.641
4x70	44.4	2085	500	0.443
4x95	51	2809	500	0.320
4x120	55.5	3339	500	0.253
4x150	60.7	3997	250	0.206
4x185	67.1	4899	250	0.164
4x240	75.9	6322	250	0.125
4x300	83.6	7694	250	0.100
4x400	93.3	9644	250	0.078
4x500	104.5	12236	250	0.061
5x1	11.9	129	1000	28.10
5x1.5	12.8	152	1000	21.10
5x2.5	14.9	209	1000	12.63
5x4	17.6	295	1000	7.21
5x6	19.5	368	1000	5.15
5x10	25.9	659	1000	3.08
5x16	28.7	825	1000	1.91
5x25	35.2	1262	1000	1.20
5x35	38.4	1527	1000	0.868
5x50	43.4	1957	500	0.641
5x70	49.3	2578	500	0.443
5x95	56.7	3440	500	0.320
5x120	61.2	4069	250	0.253
5x150	66.9	4866	250	0.206
5x185	74.1	5990	250	0.164
5x240	83.8	7722	250	0.125
5x300	92.2	9389	250	0.100
