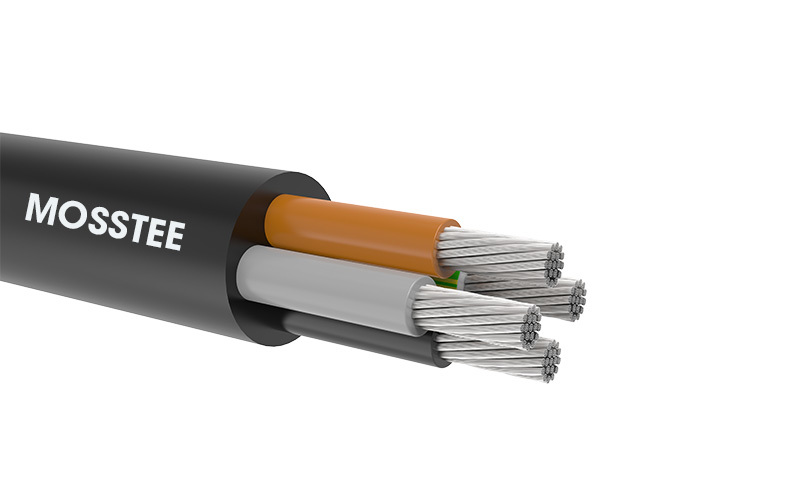

H07RN-AF

1.Flexible Aluminum Conductor (Class 5) 2.Ethylene-propylene rubber (EPR) type EI7 3.A synthetic thermosetting compound type EM7

Classification:

EN/VDE standard

Description:

1.Flexible Aluminum conductor, class 5
2.Ethylene-propylene rubber (EPR) type EI4 in acc. to EN 50363-1
3.A synthetic thermosetting compound type EM2 in acc. to EN 50363-2-1

Features:

Maximum conductor operating temperature: +60℃
Maximum conductor temperature during short circuit: +250℃
Lowest ambient temperature for fixed installation: -40℃
Lowest ambient temperature for mobile installation: -25℃
UV, sunlight, oil resistant

Code:

H07RN-AF

Construction:

Sheath: A synthetic thermosetting compound type EM2 in acc. to EN 50363-2-1
Armor: /
Filler: /
Insulation: Ethylene-propylene rubber (EPR) type EI4 in acc. to EN 50363-1
Conductor: Flexible aluminum conductor, class 5

Standards:

IEC60332-1, IEC60332-3-24, IEC60811-2-1

Application:

The cables may be rated 0.6/1 kV where the installation has been built in protection and for motors in lifting appliances –machine tools etc.
Heavy-duty flexible cables for medium mechanical stress in dry and wet, suitable for large boiling installations, heating plates
Inspections lamps, electrical tools such as drills circular saws
Domestic electric tools, transportable motors etc.
Other industrial applications
