NA2XH-F

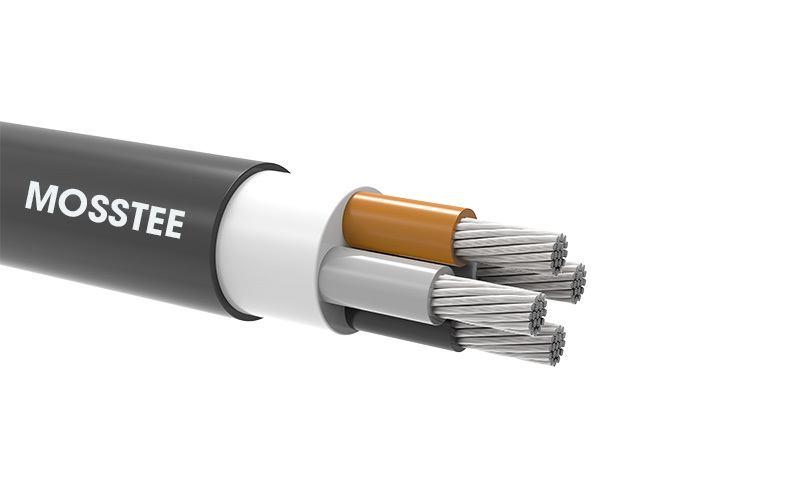

1.Flexible Aluminum Conductor (Class 5) 2.XLPE (Cross-Linked Polyethylene) Insulation 3.HFFR Filler 4.HFFR Sheath

Classification:

EN/VDE standard

Description:

1.Flexible Aluminum Conductor (Class 5)
2.XLPE (Cross-Linked Polyethylene) Insulation
3.HFFR Filler
4.HFFR Sheath

Technical Data:

Max. Operating Temperature: 90°C
Short Circuit Temperature: 250 °C (max. 5s)
Bending Radius: 6xD
Test Voltage: 3.5 kV
Voltage Rating: 0.6/1 kV

Code:

NA2XH-F, YAXZ1-F

Construction:

Sheath: HFFR Sheath
Armor: /
Filler: HFFR Filler
Insulation: XLPE (Cross-Linked Polyethylene)
Conductor: Flexible Aluminum Conductor (Class 5)

Standards:

TS IEC 60502-1, IEC 60228, IEC 60332-1, EN 61034, EN 50267, EN 60332-3

Application:

It is used in hotels, schools, hospitals, tunnels, refineries, high-rise buildings, data processing centers and business centers where people are concentrated, and in fire-sensitive areas.

Technical Parameters

Nominal Cross Section	Overall Diameter	Net Weight	Delivery Length	Resistance at 20°C	Current Carrying Capacity
(mm²)	(mm)	(kg/km)	(m)	(ohm/km)	In Ground at 20°C	In Air at 30°C
1x1.5	5.7	41	1000	21.10
1x2.5	6.2	48	1000	12.63
1x4	6.8	59	1000	7.21
1x6	7.3	68	1000	5.15
1x10	8.4	94	1000	3.08	-	-
1x16	9.2	116	1000	1.91	-	-
1x25	11.3	173	1000	1.20	-	-
1x35	12.3	210	1000	0.868
1x50	13.5	255	1000	0.641
1x70	15.6	327	1000	0.443
1x95	17.7	428	1000	0.320
1x120	19.6	534	1000	0.253
1x150	21.5	631	1000	0.206
1x185	23.9	780	1000	0.164
1x240	27.0	1001	1000	0.125
1x300	29.5	1209	1000	0.100
1x400	33.2	1534	1000	0.0778
1x500	37.6	1979	500	0.0605
1x630	41.7	2440	500	0.0469
2x1.5	10.4	142	1000	21.10
2x2.5	11.3	168	1000	12.63
2x4	12.6	210	1000	7.21
2x6	13.5	251	1000	5.15
2x10	15.8	340	1000	3.08
2x16	17.5	419	1000	1.91
2x25	21.5	638	1000	1.20
2x35	23.8	787	1000	0.868
2x50	26.5	975	1000	0.641
2x70	31.0	1308	1000	0.443
2x95	34.9	1680	1000	0.320
2x120	39.4	2141	1000	0.253
2x150	43.2	2556	1000	0.206
2x185	48.1	3187	1000	0.164
2x240	54.2	4066	500	0.125
3x1.5	10.9	153	1000	21.10
3x2.5	11.8	182	1000	12.63
3x4	13.2	229	1000	7.21
3x6	14.2	277	1000	5.15
3x10	16.7	380	1000	3.08
3x16	18.5	471	1000	1.91
3x25	22.9	724	1000	1.20
3x35	25.3	896	1000	0.868
3x50	28.3	1128	1000	0.641
3x70	33.2	1506	1000	0.443
3x95	37.5	1960	1000	0.320
3x120	42.2	2471	1000	0.253
3x150	46.3	2950	500	0.206
3x185	51.8	3702	500	0.164
3x240	58.5	4729	500	0.125
3x300	64.8	5833	250	0.100
3x400	72.9	7395	250	0.0778
3x16+10	19.7	532	1000	1.91 - 3.08
3x25+16	23.9	788	1000	1.20 - 1.91
3x35+16	25.9	942	1000	0.868 - 1.91
3x50+25	29.6	1229	1000	0.641 - 1.20
3x70+35	34.5	1639	1000	0.443 - 0.868
3x95+50	39.1	2122	1000	0.320 - 0.641
3x120+70	44.4	2738	500	0.253 - 0.443
3x150+70	47.8	3161	500	0.206 - 0.443
3x185+95	53.6	3974	500	0.164 - 0.320
3x240+120	60.5	5089	500	0.125 - 0.253
3x300+150	66.7	6200	250	0.100 - 0.206
3x400+185	74.8	7800	250	0.0778 - 0.164
4x1.5	11.6	174	1000	21.10
4x2.5	12.7	209	1000	12.63
4x4	14.2	265	1000	7.21
4x6	15.4	322	1000	5.15
4x10	18.2	449	1000	3.08
4x16	20.2	561	1000	1.91
4x25	25.1	871	1000	1.20
4x35	27.9	1084	1000	0.868
4x50	31.3	1381	1000	0.641
4x70	36.7	1844	1000	0.443
4x95	41.6	2404	1000	0.320
4x120	46.8	3055	500	0.253
4x150	51.3	3648	500	0.206
4x185	57.5	4571	500	0.164
4x240	65.0	5878	250	0.125
4x300	71.6	7153	250	0.100
4x400	80.6	9081	250	0.0778
