Al(alloy) conductor-class2

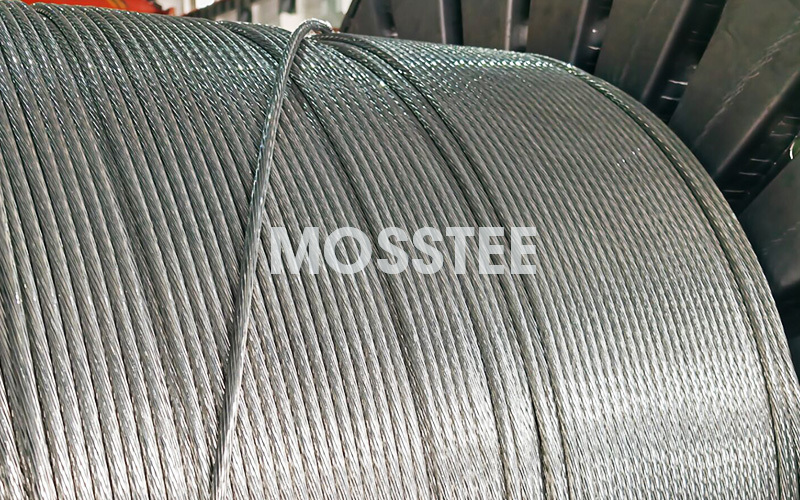

Aluminum (alloy) conductor-class2

Classification:

Aluminum (alloy) conductor-class2

Size Range: 16mm² up to 630mm², or 8AWG up to 1000kcmil
Packing Drum: 1150mm, 1800mm, 1900mm steel drum

16mm², 8AWG, 1000kcmil

ASTM B 231 – 04, ASTM B 801 – 07

Telecommunications wires and cables
Electric utilities like transmission lines, buried counterpoise wire
Data cables and flexible cables
Power cables

Size	No. of wires & diameter	OD	Lay ratio	Lay direction	Approx. weight	Max DC resistance @ 20°C	Allowance Ampacity
AWG/MCM	mm	mm	Min - Max	/	kg./km	Ω/km	Amperes
6	7 x 1.55	4.29	8-16	Left	36.8	2.211	60
4	7 x 1.96	5.41	8-16		58.5	1.39	75
2	7 x 2.470	6.81	8-16		93	0.8745	100
1	19 x 1.685	7.59	8-16	Left outer and reverse next layer lay direction	117	0.6934	115
1/0	19 x 1.894	8.53	8-16		148	0.5494	135
2/0	19 x 2.126	9.55	8-16		186	0.4361	150
3/0	19 x 2.387	10.7	8-16		235	0.3456	175
4/0	19 x 2.680	12.1	8-16		296	0.2743	205
250	37 x 2.090	13.2	8-16	Left outer and reverse successive layers and lay direction	350	0.2322	230
300	37 x 2.287	14.5	8-16		420	0.1935	255
350	37 x 2.467	15.6	8-16		490	0.1659	280
400	37 x 2.643	16.7	8-16		559	0.1452	305
500	37 x 2.950	18.7	8-16		701	0.1161	350
600	61 x 2.520	20.7	8-16	Left outer and reverse successive layers and lay direction	841	0.09673	385
650	61 x 2.621	21.5	8-16		911	0.0876	403
700	61 x 2.722	22.3	8-16		981	0.083028	420
750	61 x 2.820	23.1	8-16		1050	0.077316	435
800	61 x 2.910	23.8	8-16		1120	0.072624	450
900	61 x 3.085	25.4	8-16		1260	0.064566	480
1000	61 x 3.253	26.9	8-16		1400	0.05804	500
