AL1350/1370

Aluminum wire AL1350/1370

Classification:

Aluminum (alloy) wires

Description:

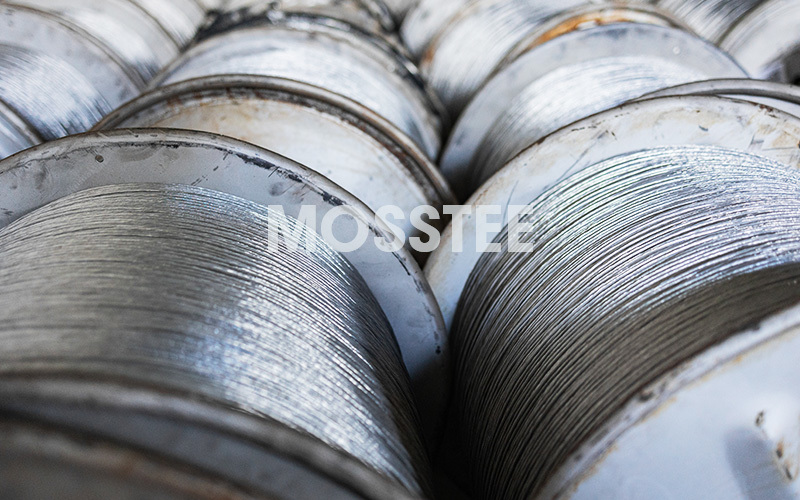

Aluminum wire AL1350/1370

Technical Data:

Size Range: 0.20mm, 0.24mm, 0.30mm, 0.40mm, 0.50mm, 9.5mm
Aluminum Content (by weight): 99.5%, 99.7%
Packing Drum size: DIN130, DIN160, DIN180, DIN250, DIN400,

Code:

AL1350/1370

Standards:

ASTM B 230/B 230M – 99

Application:

Telecommunications wires and cables
Electric utilities like transmission lines, buried counterpoise wire
Data cables and flexible cables
Drop wire and magnet wire

Technical Parameters

Type	AL1350/1370
Size	9.5mm/12mm ±0.5mm
Parameters	Tensile strength		Elongation				Electrical resistivity (20℃）
	85-115MPa		≥12 %				≤28.08 nΩ.m
Chemical composition	Si(%)	Fe(%)	Cu(%)	Mn(%)	Cr(%)	Zn(%)	B(%)	Ga(%)	Va+Ti(%)
	0.100	0.400	0.050	0.010	0.010	0.050	0.050	0.030	0.020
	Other elements, a single max (%)		Other elements, maximum total (%)				Al least value (%)
	0.030		0.100				99.50%, 99.70%
Production equipment	Italy Continuus - Properzi
Weight	2000Kg--2500kg
Standard	GB/T30552-2014<<Aluminum alloy wires for conductors of insulated cables>>
	GB/T3954-2014<<electrician round aluminum rod>>
	ASTM B230-99<< Aluminum 1350–H19 Wire for Electrical Purposes>>
