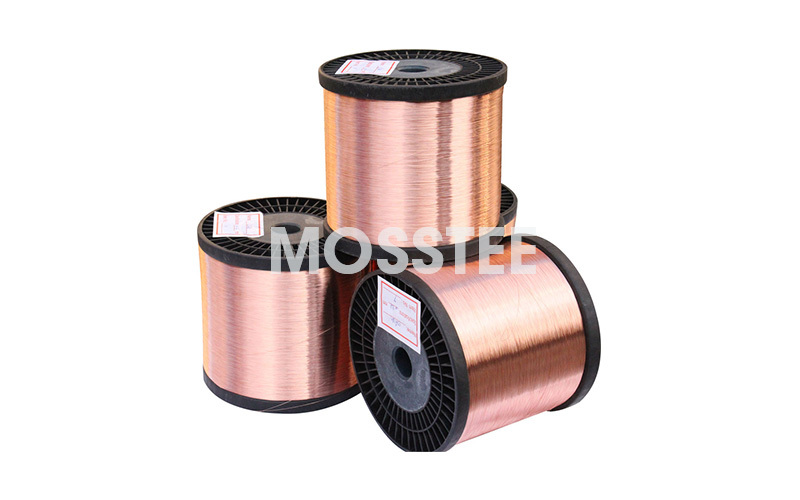

Copper Clad Steel wire (CCS)

Classification:

Bimetallic wires

Description:

Copper Clad Steel wire (CCS)

Technical Data:

Size Range: 0.10mm, 0.12mm, 0.20mm, 0.24mm, 0.40mm, 1.02mm, 2.59mm, 3.63mm
Packing Drum size: DIN130, DIN160, DIN180, DIN250, DIN400, DIN760
Conductivity: 18% IACS, 21% IACS, 30% IACS, 40% IACS

Code:

CCS-0.10mm

Standards:

ASTM B227-04

Application:

Telecommunications wires and cables
Electric utilities like transmission lines, buried counterpoise wire
Grounding conductor

Technical Parameters

Diameter (mm)	Tolerance (mm)	Conductivity (%) min @ 20℃	Resistivity (Ω.mm²/km) max @ 20℃	Resistance (Ω/km) max @ 20℃	Tensile strength (Mpa) min		Elongation (%) min

					Hard type	Annealed type	Hard type	Annealed type

0.102	0.003	16	108	13187	827	380	1	10
		21	82	10047
		30	57	7033
		40	43	5275
0.511	0.005	16	108	525	827	380	1	10
		21	82	400
		30	57	280
		40	43	210
0.81	0.008	16	108	209	827	380	1	15
		21	82	159
		30	57	112
		40	43	84
1.02	0.01	16	108	132	827	380	1	15
		21	82	100
		30	57	70
		40	43	53
1.628	0.016	16	108	52	827	380	1.5	15
		21	82	39
		30	57	28
		40	43	21
