RZ1-AK

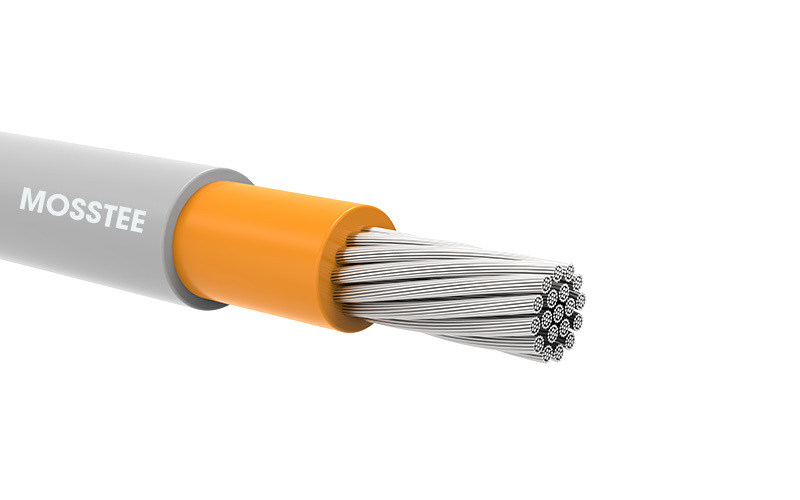

1.Flexible Aluminum Conductor (Class 5) 2.XLPE (Cross-Linked Polyethylene) Insulation 3.HFFR Sheath (UV)

Classification:

EN/VDE standard

Description:

1.Flexible Aluminum Conductor (Class 5)
2.XLPE (Cross-Linked Polyethylene) Insulation
3.HFFR Sheath (UV)

Technical Data:

Max. Operating Temperature: 90°C
Short Circuit Temperature: 250 °C (max. 5s)
Bending Radius: 6D
Test Voltage: 3.5 kV
Voltage Rating: 0.6/1 kV

Code:

RZ1-AK

Construction:

Sheath: HFFR (UV)
Armor: /
Filler: /
Insulation: XLPE (Cross-Linked Polyethylene)
Conductor: Flexible Aluminum Conductor (Class 5)

Standards:

TS IEC 60502-1, IEC 60228, IEC 60332-1, EN 61034, EN 50267, EN 60332-3

Application:

It is used in hotels, schools, hospitals, tunnels, refineries, high-rise buildings, data processing centers and business centers where people are concentrated, and in fire-sensitive areas.

Technical Parameters

Nominal Cross Section	Overall Diameter	Net Weight	Delivery Length	Resistance at 20°C	Current Carrying Capacity
(mm²)	(mm)	(kg/km)	(m)	(ohm/km)	In Ground at 20°C	In Air at 30°C
4x1.5	11.6	152	1000	21.10	-	-
4x2.5	12.7	185	1000	12.63	-	-
4x4	14.2	239	1000	7.21	-	-
4x6	15.4	284	1000	5.15	-	-
4x10	18.2	425	1000	3.08	-	-
4x16	20.2	541	1000	1.91	-	-
4x25	25.1	894	1000	1.20	-	-
4x35	27.9	1105	1000	0.868	-	-
4x50	31.3	1384	1000	0.641	-	-
4x70	36.7	1844	1000	0.443	-	-
4x95	41.6	2404	1000	0.320	-	-
4x120	46.8	2950	500	0.253	-	-
4x150	51.3	3541	500	0.206	-	-
4x185	57.5	4381	500	0.164	-	-
4x240	65.0	5637	250	0.125	-	-
4x300	71.6	6805	250	0.100	-	-
4x400	80.6	8675	250	0.0778	-	-
4x500	90.2	11262	250	0.0605	-	-
