SDI-90-AF

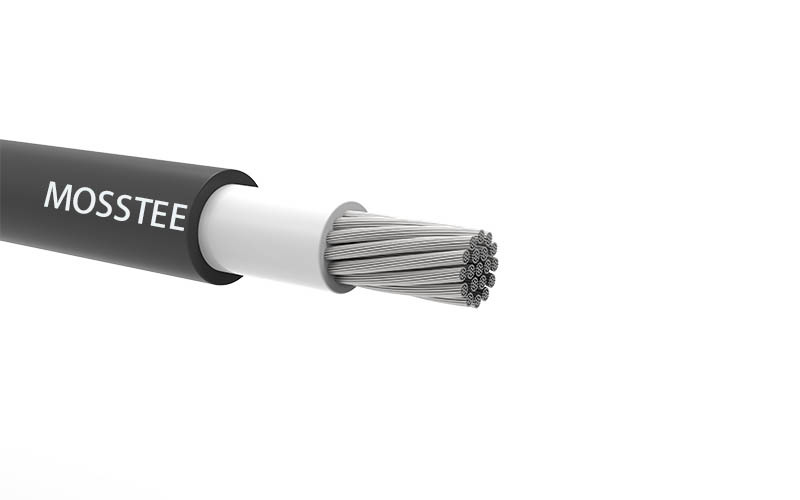

1.Flexible Aluminum Conductor Class 5 2.XLPE X-90 Insulation (White) 3.PVC 5V-90 outer Sheath (Black - UV Stabilized)

Classification:

AS/NZS standard

Description:

1.Flexible Aluminum Conductor Class 5
2.XLPE X-90 Insulation (White)
3.PVC 5V-90 outer Sheath (Black - UV Stabilized)

Technical Data:

Operating Voltage: 0.6/1KV AC, 1.5kV DC
Operating Temp.: -40°C~ +90°C
Short Circuit Temp.: 250°C for 5 sec

Code:

SDI-90-AF

Construction:

Sheath: PVC 5V-90 0uter Sheath (Black - UV Stabilized)
Armor: /
Filler: /
Insulation: XLPE X-90 Insulation (White)
Conductor: Flexible Aluminum Conductor Class 5

Standards:

AS/NZS 5000.1 Electric Cables-Polymeric insulated. Part 1: For working voltages up to and including 0.6/1kV
AS/NZS 1660.5.6 (Equivalent to IEC 60332-1)
AS/NZS 3808 Insulating and sheathing materials for electric cables
AS/NZS 1660.5.1 (Equivalent to IEC60332-3-24)
AS/NZS 1125 Conductors in insulated electric cables and flexible cords

Application:

Mostly used for buildings and industrial plants where not subject to mechanical damage. Suitable for installation indoor/outdoor, enclosed in conduit, and in underground duct

Technical Parameters

Nominal Cross Section	Conductor Diameter	Insulation Thickness	Diameter Over Insulation	PVC Sheath Thickness	Overall Approx. Diameter -5%~+10%
(mm²)	(mm)	(mm)	(mm)	(mm)	(mm)
16	5.44	0.7	6.8	1.4	9.6
25	6.88	0.9	8.7	1.4	11.5
35	8.59	0.9	10.4	1.4	13.2
50	10.38	1.0	12.4	1.4	15.2
70	11.68	1.1	13.9	1.5	16.9
95	13.51	1.1	15.7	1.5	18.8
120	15.37	1.2	17.8	1.6	21.0
150	16.4	1.4	19.2	1.7	22.5
185	18.3	1.6	21.5	1.8	25.0
240	20.8	1.7	24.2	1.8	27.9
300	23.2	1.8	16.8	1.9	30.7
400	29.2	2.0	33.2	2.2	37.5
500	32.2	2.2	36.6	2.3	41.2
630	36.4	2.4	41.2	2.4	46.1
