V90HT-EAF

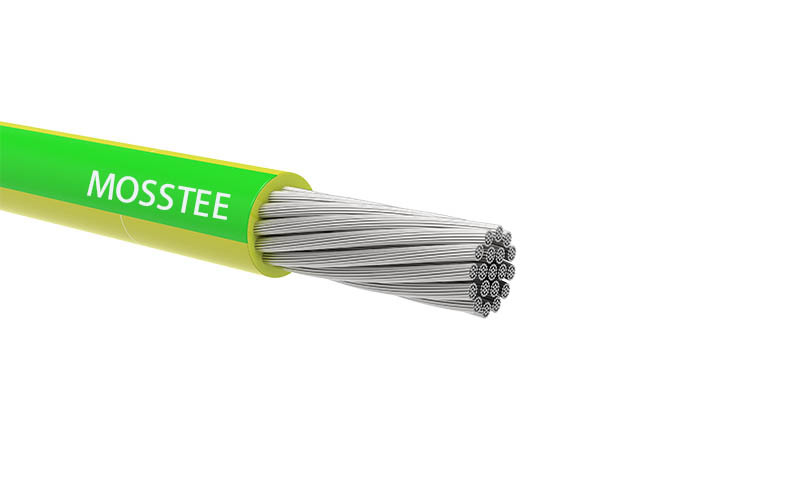

1.Flexible Aluminum Conductor Class 5 2.PVC V-90HT Insulation (Green/yellow)

Classification:

AS/NZS standard

Description:

1.Flexible Aluminum Conductor Class 5
2.PVC V-90HT Insulation (Green/yellow)

Technical Data:

Operating Temp：-25℃+90℃，Maximum 105℃
(Note: Where it is possible to guard against plastic flow and where reduced insulation resistance can be tolerated, V-90HT can be operated at a temperature of 105℃ for an average of 500 hours per annum.)
Insulation shall be UV resistant.

Code:

V90HT-EAF

Construction:

Sheath: /
Armor: /
Filler: –
Insulation: PVC V-90HT Insulation (Green/yellow) UV resistant
Conductor: Flexible Aluminum Conductor Class 5

Standards:

AS/NZS 5000.1： Electric cables-Polymeric insulated. Part 1：For working voltages up-to and including 0.6/1kV.
AS/NZS 1125：Conductors in insulated electric cables and flexible cords.
AS/NZS 3808：Insulating and sheathing materials for electric cables.
AS/NZS 1660.5.6：Test methods for electric cables, cords and conductors Fire tests - Test for vertical flame propagation for a single insulated wire or cable (Equivalent to IEC60332-1)

Application:

Earth (Ground) wire

Technical Parameters

Nominal Cross Section	Conductor Diameter	Nominal Insulation Thickness	Approx. Overall Diameter -5% ~ 10%
(mm²)	(mm)	(mm)	(mm)
16	5.44	1.0	7.4
25	6.88	1.2	9.3
35	8.59	1.2	11.0
50	10.38	1.4	13.2
70	11.68	1.4	14.5
95	13.51	1.6	16.7
120	15.37	1.6	18.6
150	16.4	1.8	20.0
185	18.3	2.0	22.3
240	20.8	2.2	25.2
300	23.2	2.4	28.0
400	29.2	2.6	34.4
500	32.2	2.8	37.8
630	36.4	2.8	42.0
