HFFR LV CABLES

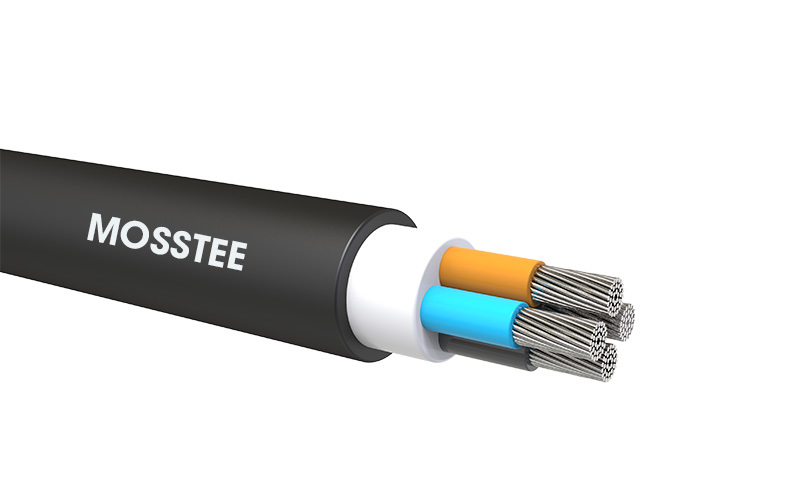

0.6/1 kV XLPE insulated, LSZH(HFFR) sheathed, single core and multi cores cable

Category:

EN/VDE/UL Standard Cables

hbwong@mosstee.com

Inquire Now
Related Product

Product Introduction

Description:

0.6/1 kV XLPE insulated, LSZH(HFFR) sheathed, single core and multi cores cable



Technical Data:

Max. Operating Temperature: 90°C
Short Circuit Temperature : 250°C (max.5s)
Voltage Rating: 0.6/1kV
Min. Bending Radius: 12×D



Code:

N2XH, NA2XH



Construction:

Sheath: XLPE
Armor: /
Filler: HFFR
Insulation: HFFR
Conductor: Solid (Class 1) or stranded (Class 2) copper/aluminum conductor



Standards:

SI 1516-1, IEC 60502-1



Application:

Used in energy networks in refineries, mines, hotels, schools, tunnels, high constructions, hospitals, power plant, data processing centers, business centers where there is a risk of fire.



Technical Parameters

Cable Types

No.

P/N

Standard

Conductor Type

Cores

Insulation

Bedding & Filler

Sheath

Rated voltage

HFFR LV Cables

1

N2XH

SI 1516-1, IEC 60502-1

Cu

1

XLPE

N/A

LSZH (HFFR)

0.6/1 kV

2

N2XH

2,3,4,5

3

NA2XH

Al

1

4

NA2XH

2,3,4,5
