Stranded wires

Classification:

Bimetallic wires

Description:

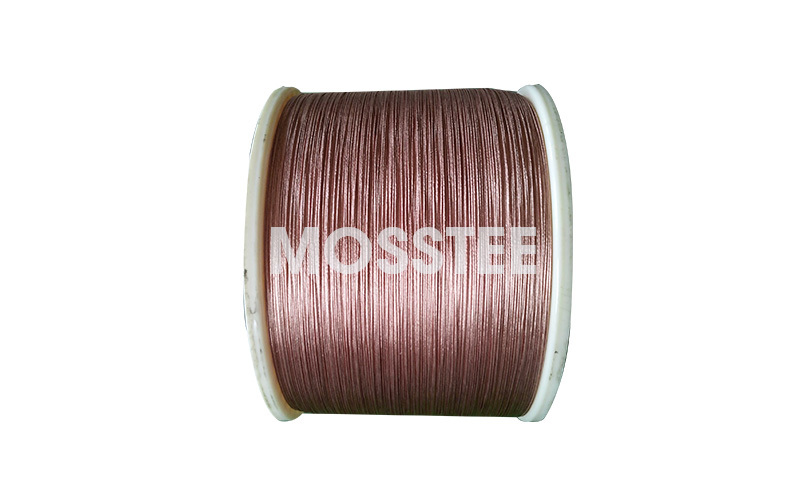

Stranded wires

Technical Data:

Size Range: 0.75mm², 1.50mm², 2.00mm², 4.0mm², 6.0mm², 16mm², 50mm²
Copper Content (by weight): 10%, 28%, 32%, 36%, 40%
Packing Drum size: DIN400, DIN630
Conductivity: 62% IACS

Code:

CCA-22×0.24mm

Standards:

ASTM B566-04, ASTM B229-04

Application:

Telecommunications wires and cables
Electric utilities like transmission lines, buried counterpoise wire
Data cables and flexible cables
Grounding conductor

Technical Parameters

CCA stranded wires replacing copper wires designation

Copper stranded wires								CCA stranded wires replacement design
Section area for copper conductor (mm²)	Class 5			Class 6			Maximum resistance of conductor @20 °C (Ω/km)	Section area for CCA stranded wires (mm²)	Class 5
Section area for copper conductor (mm²)	Const. (No./mm)	Nominal Cond. OD (mm)	Nominal weight (kg/km)	Const. (No./mm)	Nominal Cond. OD (mm)	Nominal weight (kg/km)	Maximum resistance of conductor @20 °C (Ω/km)	Section area for CCA stranded wires (mm²)	Constr. (No./mm)	Nominal Cond. OD (mm)	Nominal weight (kg/km)	Maximum resistance of conductor @20 °C (Ω/km)
0.5	16/0.2	0.9	4.6	25/0.16	0.9	4.6	39	0.75	22/0.2	1.1	2.1	39.7
0.75	24/0.2	1.2	6.9	38/0.16	1.2	6.9	26	1	33/0.2	1.3	3.1	26.5
1	32/0.2	1.3	9.2	50/0.16	1.3	9.2	19.5	1.5	27/0.24	1.5	5.5	22.53
1.5	31/0.25	1.6	13.9	75/0.16	1.6	13.9	13.3	2.5	45/0.24	1.8	6.5	13.52
2.5	51/0.25	2.1	22.8	125/0.16	2.1	22.8	7.98	4	50/0.30	2.4	9.8	7.79
4	57/0.3	2.6	36.6	201/0.16	2.6	36.6	4.95	6	80/0.30	3.06	16.8	4.86
6	84/0.3	3.2	53.9	196/0.2	3.2	53.9	3.3	10	77/0.40	3.8	25	2.85
10	84/0.4	4.2	95.8	322/0.2	4.2	95.8	1.91	16	119/0.4	5	44	1.84
16	128/0.4	5.2	146	513/0.2	5.2	146	1.21	25	182/0.4	6.1	64	1.21
