Bimetallic wires

CCA/CCAA/CAA wire

Classification:

Bimetallic wires

Description:

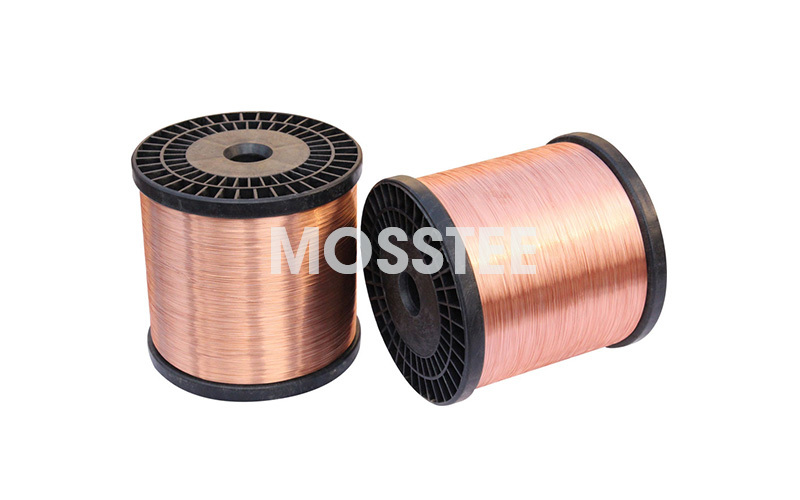

Copper Clad Aluminum wire (CCA)

Technical Data:

Size Range: 0.12mm, 0.20mm, 0.24mm, 0.40mm, 1.32mm, 1.72mm, 2.8mm, 3.6mm, 4.47mm
Copper Content (by weight): 10%, 28%, 32%, 36%, 40%
Packing Drum size: DIN130, DIN160, DIN180, DIN250, DIN400, DIN760
Conductivity: 62% IACS

Code:

CCA-0.24mm, CCA-10A-1.32mm, CCA-15A-0.20mm

Standards:

ASTM B566-04

Application:

Telecommunications wires and cables
Electric utilities like transmission lines, buried counterpoise wire
Data cables and flexible cables
Drop wire and magnet wire
Lead wire for transistors, resistors, capacitors

Technical Parameters

Specification for CCA wire - 10%

Type	Technical Characteristics
CCA-10%	Diameter & variations	Tensile Strength (MPa)	Resistivity (Ω.mm²/m) Max at 20℃	Elongation (%)	Thickness of Copper (μm) min	Density (g/cm³) Max at 20℃
	0.80mm ±1%	90-130	0.0275	8-14	10	2.85
	0.60mm ±1%				8
	0.50 mm ±1%				7
	0.48 mm ±1%				6
	0.40 mm ±1%				5
	0.30 mm ±0.003mm				4
	0.25 mm ±0.003mm				4
	0.20 mm ±0.003mm				3
	0.18 mm ±0.003mm				2

Specification for CCA wire - 30%

Type	Technical Characteristics
CCA-30%	Diameter & variations	Tensile Strength (MPa) max	Resistivity (Ω.mm²/m) Max at 20℃	Elongation (%) min	Thickness of Copper (μm) min	Density (g/cm³) Max at 20℃
	2.5mm ±1%	138	0.02743	15	50	3.32
	2.2mm ±1%	138		15	44
	2.0mm ±1%	138		15	40
	1.2 mm ±1%	138		15	24
	0.8 mm ±1%	138		15	16
	0.4 mm ±1%	172		10	8
	0.25 mm ±0.003mm	172		5	5
	0.18 mm ±0.003mm	172		5	4
	0.15 mm ±0.003mm	172		5	4
	0.12 mm ±0.003mm	172		5	3

Specification for CCA wire - 40%

Type	Technical Characteristics
CCA-40%	Diameter & variations	Tensile Strength (MPa) max	Resistivity (Ω.mm²/m) Max at 20℃	Elongation (%) min	Thickness of Copper (μm) min	Density (g/cm³) Max at 20℃
	2.5mm ±1%	138	0.02676	15	63	3.63
	2.2mm ±1%	138		15	55
	2.0mm ±1%	138		15	50
	1.2 mm ±1%	138		15	30
	0.8 mm ±1%	138		15	20
	0.4 mm ±1%	172		10	10
	0.25 mm ±0.003mm	172		5	7
	0.18 mm ±0.003mm	172		5	5
	0.15 mm ±0.003mm	172		5	4
	0.12 mm ±0.003mm	172		5	3
