Al(alloy) conductor-class5
Classification:
Product Description
Description:

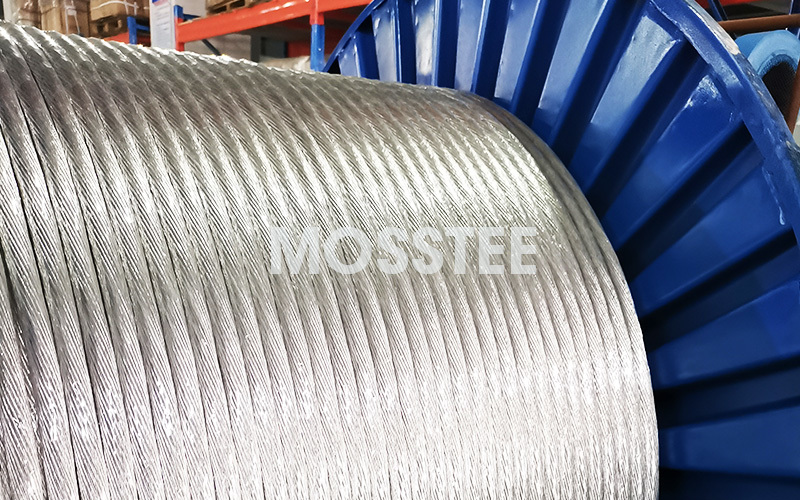

Aluminum (alloy) conductor-class5
Technical Data:
Size Range: 16mm2 up to 630mm2, or 8AWG up to 1000kcmil
Packing Drum: 1150mm, 1800mm, 1900mm steel drum
Code:
16mm2, 8AWG, 1000kcmil
Standards:
ASTM B 231 – 04, ASTM B 801 – 07, IEC 60228
Application:
Telecommunications wires and cables
Electric utilities like transmission lines, buried counterpoise wire
Data cables and flexible cables
Power cables
Technical Parameters
|
AL/(SQ) |
Single wire Diameter (mm) |
No. of wires |
Lay length (mm) |
Direction of bunching |
Construction |
Lay length of each layer (mm) |
Direction of stranding |
OD max (mm) |
Max DC Resistance @20℃ (ohm/km) |
|
0.75 |
0.3 |
11 |
23 |
S |
1 |
/ |
S |
1.10 |
40.10 |
|
1 |
0.3 |
15 |
27 |
S |
1 |
/ |
S |
1.30 |
26.7 |
|
1.25 |
0.3 |
18 |
26 |
S |
1 |
/ |
S |
1.42 |
24.10 |
|
1.5 |
0.3 |
22 |
28 |
S |
1 |
/ |
S |
1.50 |
20.0 |
|
2 |
0.3 |
28 |
30 |
S |
1 |
/ |
S |
1.80 |
16.0 |
|
2.5 |
0.3 |
35 |
41 |
S |
1 |
/ |
S |
1.90 |
13.7 |
|
4(2.5) |
0.3 |
55 |
51 |
S |
1 |
/ |
S |
2.50 |
8.21 |
|
6(4) |
0.3 |
85 |
64 |
S |
1 |
/ |
S |
3.10 |
5.09 |
|
9.2(10AWG) |
0.3 |
130 |
79 |
S |
1 |
/ |
S |
3.87 |
4.20 |
|
10(6) |
0.3 |
143 |
60 |
S |
3 |
65 |
S |
5.00 |
3.39 |
|
16(10) |
0.3 |
225 |
75 |
S |
3 |
81 |
S |
6.20 |
1.95 |
|
22(6AWG) |
0.3 |
290 |
47 |
S |
1+6 |
82 |
S |
6.42 |
1.51 |
|
25A(16) |
0.3 |
345 |
61 |
S |
1+6 |
107 |
S |
7.10 |
1.24 |
|
25B(16) |
0.3 |
345 |
49 |
S |
1+6 |
85 |
Z |
7.10 |
1.24 |
|
35A(25) |
0.3 |
494 |
73 |
S |
1+6 |
127 |
S |
8.40 |
0.795 |
|
35B(25) |
0.3 |
494 |
58 |
S |
1+6 |
102 |
Z |
8.40 |
0.795 |
|
42(2AWG) |
0.3 |
590 |
64 |
S |
1+6 |
130 |
S |
9.25 |
0.68 |
|
50A(35) |
0.3 |
707 |
70 |
S |
3+9 |
152 |
S |
10.10 |
0.554 |
|
50B(35) |
0.3 |
707 |
66 |
S |
1+6 |
119 |
Z |
9.80 |
0.554 |
|
75(50) |
0.3 |
1,055 |
64 |
S |
1+6+12 |
184 |
S |
12.30 |
0.393 |
|
105(70) |
0.3 |
1,480 |
76 |
S |
1+6+12 |
218 |
S |
14.60 |
0.277 |
|
140(95) |
0.3 |
2,020 |
89 |
S |
1+6+12 |
254 |
S |
16.90 |
0.210 |
|
185(120) |
0.3 |
2,570 |
72 |
S |
1+6+12+18 |
288 |
S |
19.10 |
0.164 |
|
240(150) |
0.3 |
3,350 |
82 |
S |
1+6+12+18 |
325 |
S |
22.00 |
0.132 |
|
300(185) |
0.3 |
4,200 |
92 |
S |
1+6+12+18 |
364 |
S |
24.20 |
0.108 |
