5V90-AF
Classification:
Product Description

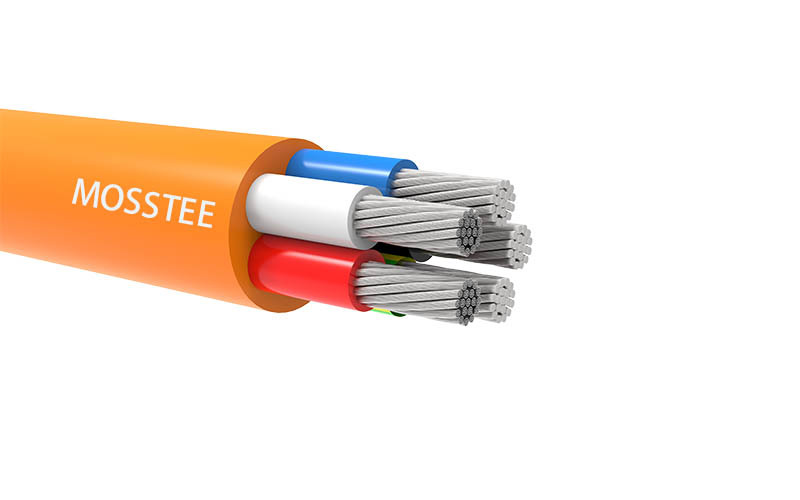

Description:
1.Flexible Aluminum Conductor
2.XLPE X-90 Insulation
3.PVC 5V-90 Outer Sheath（Orange-UV Resistant）
4.Earth Core
Technical Data:
Rated Voltage: 0.6/1KV
Operating Temp.: -40°C ~ +90°C
Short Circuit Temp.: 250°C for 5 sec
Code:
5V90-AF
Construction:
Sheath: PVC 5V-90 0uter Sheath (Orange - UV Stabilized)
Armour: –
Filler: Non-hygroscopic filler
Insulation: XLPE X-90 Insulation
Conductor: Flexible Aluminum Conductor Class 5
Standards:
AS/NZS 5000.1: Electric Cables-Polymeric insulated. Part 1：For working voltages up to and including 0.6/1kV.
AS/NZS 1125：Conductors in insulated electric cables and flexible cords.
AS/NZS 3808：Insulating and sheathing materials for electric cables.
AS/NZS：1660.5.6: Test methods for electric cables, cords and conductors Method 5.6: Fire tests-Test for vertical flame propagation for a single insulated wire or cable (Equivalent to IEC60332-1)
AS/NZS 1660.5.1: Test methods for electric cables, cords and conductors Method 5.1: Fire tests—Test for vertical flame spread of vertically-mounted bunched wires or cables – Cat. C (Equivalent to IEC60332-3-24)
Application:
For mains, sub mains and sub circuits unenclosed, enclosed in conduit buried direct or underground ducts for buildings and industrial plants where not subject to mechanical damage. Suitable for glanding.
Technical Parameters
|
Description |
Cond. Dia. (mm) |
INSUL THK (mm) |
Core Dia. (mm) |
Earth Cond. Section Area (mm²) |
Earth Cond. Dia. (mm)
|
Earth INSUL THK (mm) |
Earth Core Dia. (mm) |
Nom. Lay-up Core Dia. (mm) |
Nom. Outer Sheath THK (mm) |
Approx. Overall Dia. -5% ~ 10% (mm) |
|
4C 16mm² +E 16mm² |
5.4 |
0.7 |
6.8 |
16 |
5.4 |
0.7 |
6.8 |
18.4 |
1.8 |
22.0 |
|
4C 25mm² +E 25mm² |
6.8 |
0.9 |
8.6 |
25 |
6.8 |
0.9 |
8.6 |
23.2 |
1.8 |
26.8 |
|
4C 50mm² +E 50mm² |
8.5 |
0.9 |
10.3 |
35 |
8.5 |
0.9 |
10.3 |
27.8 |
2.0 |
31.8 |
|
4C 70mm² +E 70mm² |
9.9 |
1.0 |
11.9 |
50 |
9.9 |
1.0 |
11.9 |
32.1 |
2.1 |
36.4 |
|
4C 95mm² +E 95mm² |
11.7 |
1.1 |
13.9 |
70 |
11.7 |
1.1 |
13.9 |
37.5 |
2.3 |
42.2 |
|
4C 120mm² +E 120mm² |
13.5 |
1.1 |
15.7 |
95 |
13.5 |
1.1 |
15.7 |
42.4 |
2.5 |
47.4 |
|
4C 150mm² +E 150mm² |
15.1 |
1.2 |
17.5 |
120 |
15.1 |
1.2 |
17.5 |
47.3 |
2.7 |
52.6 |
|
4C 185mm² +E 185mm² |
17.3 |
1.4 |
20.1 |
150 |
17.3 |
1.4 |
20.1 |
54.3 |
2.9 |
60.1 |
|
4C 240mm² +E 240mm² |
18.9 |
1.6 |
22.1 |
185 |
18.9 |
1.6 |
22.1 |
59.7 |
3.1 |
65.8 |
|
4C 16mm² +E 16mm² |
21.5 |
1.7 |
24.9 |
240 |
21.5 |
1.7 |
24.9 |
67.2 |
3.4 |
73.9 |
