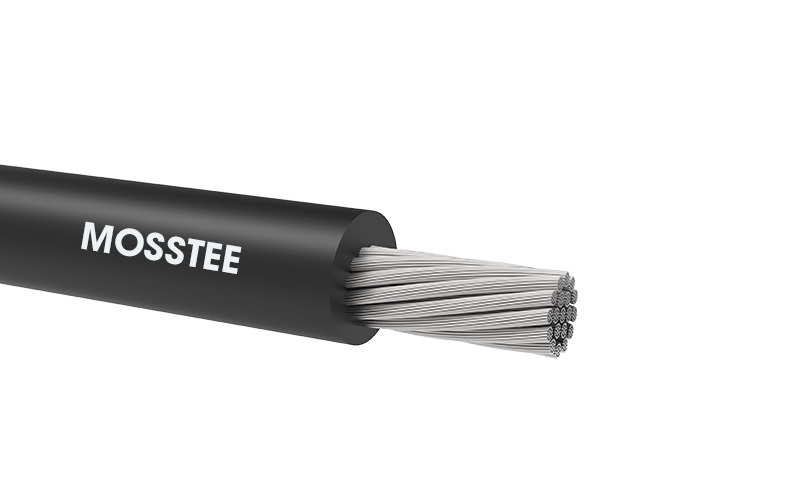

A07Z1-AK

1.Flexible Aluminum Conductor (Class 5) 2.HFFR Insulation

Classification:

EN/VDE standard

Description:

1.Flexible Aluminum Conductor (Class 5)
2.HFFR Insulation

Technical Data:

Max. Operating Temperature: 90°C
Short Circuit Temperature: 250°C (max.5s)
Bending Radius: 6D
Test Voltage: 2 kV
Voltage Rating: 450/750 V

Code:

A07Z1-AK

Construction:

Sheath: /
Armor: /
Filler: /
Insulation: HFFR
Conductor: Flexible Aluminum Conductor (Class 5)

Standards:

IEC 60228, IEC 60332-1

Application:

It is used in hotels, schools, hospitals, tunnels, refineries, high-rise buildings, data processing centers and business centers where people are concentrated, and in fire-sensitive areas.

Technical Parameters

Nominal Cross Section	Overall Diameter	Net Weight	Delivery Length	Resistance at 20°C	Current Carrying Capacity
(mm²)	(mm)	(kg/km)	(m)	(ohm/km)	In Ground at 20°C	In Air at 30°C
1x1.5	2.9	13	100	21.80	-	-
1x2.5	3.6	20	100	13.10	-	-
1x4	4.2	27	100	8.10	-	-
1x6	4.7	34	100	5.41	-	-
1x10	6.2	60	100	3.08	-	-
1x16	7.0	77	100	1.91	-	-
1x25	9.1	128	1000	1.20	-	-
1x35	10.1	159	1000	0.868	-	-
1x50	11.5	206	1000	0.641	-	-
1x70	13.3	277	1000	0.443	-	-
1x95	15.6	381	1000	0.320	-	-
1x120	17.3	466	1000	0.253	-	-
1x150	19.0	564	1000	0.206	-	-
1x185	21.3	703	1000	0.164	-	-
1x240	24.3	921	1000	0.125	-	-
1x300	26.9	1128	1000	0.100	-	-
1x400	30.4	1439	1000	0.0778	-	-
1x500	34.6	1868	1000	0.0605	-	-
1x630	37.9	2250	500	0.0469	-	-
