A05VV-AF

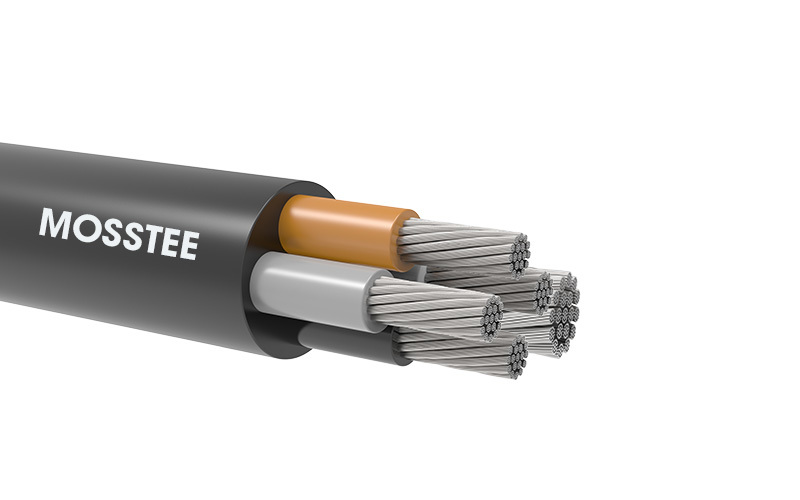

1.Flexible Aluminum Conductor (Class 5) 2.PVC (Polyvinyl Chloride) Insulation 3.PVC Sheath

Classification:

EN/VDE standard

Description:

1.Flexible Aluminum Conductor (Class 5)
2.PVC (Polyvinyl Chloride) Insulation
3.PVC Sheath

Technical Data:

Max. Operating Temperature: 70°C
Short Circuit Temperature: 160 °C (max. 5sn.)
Bending Radius: 6xD
Test Voltage: 2 kV
Voltage Rating: 300/500 V

Code:

A05VV-AF

Construction:

Sheath: PVC
Armor: /
Filler: /
Insulation: PVC (Polyvinyl Chloride)
Conductor: Flexible Aluminum Conductor (Class 5)

Standards:

EN 50525-2-11, VDE 0281, IEC 60227, BS 6500, IEC 60228, IEC 60332-1

Application:

It is used in closed and dry places where there is little mechanical stress, in household appliances, in steamy and humid places.

Technical Parameters

Nominal Cross Section	Overall Diameter	Net Weight	Delivery Length	Resistance at 20°C	Current Carrying Capacity
(mm²)	(mm)	(kg/km)	(m)	(ohm/km)	In Ground at 20°C	In Air at 30°C
2x0.75	6.3	54	100	37.40	-
2x1	6.6	61	100	28.10	-
2x1.5	7.4	76	100	21.10	-
2x2.5	9.1	116	100	12.63	-
2x4	10.6	157	100	7.21	-
2x6	12.0	200	100	5.15	-
2x10	16.4	364	1000	3.08	-
2x16	18.1	447	1000	1.91	-
2x25	22.9	723	1000	1.20	-
2x35	25.1	881	1000	0.868
3x0.75	6.6	62	100	37.40	-
3x1	7.0	70	100	28.10	-
3x1.5	8.1	91	100	21.10	-
3x2.5	9.9	135	100	12.63	-
3x4	11.4	183	100	7.21	-
3x6	12.7	227	100	5.15	-
3x10	17.4	418	1000	3.08	-
3x16	19.1	516	1000	1.91	-
3x25	24.5	838	1000	1.20	-
3x35	26.8	1026	1000	0.868	-
3x50	30.4	1310	1000	0.641	-
3x70	34.4	1721	1000	0.443	-
3x95	39.6	2291	1000	0.320	-
3x120	43.5	2800	1000	0.253	-
3x150	47.7	3357	500	0.206	-
3x185	53.1	4164	500	0.164	-
3x240	60.2	5372	500	0.125	-
4x0.75	7.2	75	100	37.40	-
4x1	7.9	88	100	28.10	-
4x1.5	9.0	115	100	21.10	-
4x2.5	10.8	163	100	12.63	-
4x4	12.5	223	100	7.21	-
4x6	14.1	282	100	5.15	-
4x10	19.0	504	1000	3.08	-
4x16	21.1	626	1000	1.91	-
4x25	27.0	1033	1000	1.20	-
4x35	29.7	1268	1000	0.868	-
4x50	33.6	1619	1000	0.641	-
4x70	38.1	2133	1000	0.443	-
4x95	44.0	2868	1000	0.320	-
4x120	48.5	3506	500	0.253	-
4x150	53.0	4202	500	0.206	-
4x185	59.0	5208	500	0.164	-
4x240	67.0	6757	500	0.125	-
5x0.75	9.1	135	100	37.40	-
5x1	9.6	151	100	28.10	-
5x1.5	11.1	201	100	21.10	-
5x2.5	13.0	280	100	12.63	-
5x4	15.1	384	100	7.21	-
5x6	16.4	450	100	5.15	-
5x10	21.0	751	1000	3.08	-
5x16	23.2	938	1000	1.91	-
5x25	29.7	1542	1000	1.20	-
5x35	32.7	1895	1000	0.868	-
5x50	37.0	2444	1000	0.641	-
5x70	42.1	3203	1000	0.443	-
5x95	48.7	4322	500	0.320	-
5x120	53.7	5307	500	0.253	-
5x150	58.7	6369	500	0.206	-
5x185	65.4	7892	500	0.164	-
5x240	74.3	10431	500	0.125	-
3x10+6	18.1	471	1000	3.08 - 5.15	-
3x16+10	20.5	615	1000	1.91 - 3.08	-
3x25+16	24.9	915	1000	1.20 - 1.91	-
3x35+16	27.2	1101	1000	0.868 - 1.91	-
3x50+25	31.4	1466	1000	0.641 - 1.20	-
3x70+35	35.7	1926	1000	0.443 - 0.868	-
3x95+50	41.0	2544	1000	0.320 - 0.641	-
3x120+70	45.6	3187	500	0.253 - 0.443	-
3x150+70	49.0	3677	500	0.206 - 0.443	-
3x185+95	55.0	4636	500	0.164 - 0.320	-
3x240+120	62.0	5925	500	0.125 - 0.253	-
7x1	9.6	126	1000	28.10	-
7x1.5	11.3	170	1000	21.10	-
7x2.5	13.4	242	1000	12.60	-
10x1	11.3	175	1000	28.10	-
10x1.5	13.2	235	1000	21.10	-
10x2.5	15.9	343	1000	12.60	-
12x1	12.4	209	1000	28.10	-
12x1.5	14.2	272	1000	21.10	-
12x2.5	17.1	398	1000	12.60	-
14x1	13.4	244	1000	28.10	-
14x1.5	15.5	325	1000	21.10	-
14x2.5	18.9	481	1000	12.60	-
19x1	15.6	330	1000	28.10	-
19x1.5	15.5	419	1000	21.10	-
19x2.5	21.4	621	1000	12.60	-
24x1	17.1	401	1000	28.10	-
24x1.5	20.0	540	1000	21.10	-
24x2.5	24.0	782	1000	12.63	-
