SOLAR CABLES

AC: 0.6/1 kV, DC: 1500V XLPO/XLPE insulated, LSZH/XLPE sheathed, single core and double cores cable

Classification:

EN/VDE/UL Standard Cables

Description:

AC: 0.6/1 kV, DC: 1500V XLPO/XLPE insulated, LSZH/XLPE sheathed, single core and double cores cable

Technical Data:

Max. Operating Temperature: -40°C to +90°C
Max. Storage Temperature: +40°C
Min. Temperature for installation handling: -25°C
Voltage Rating: 0.6/1kV(AC), 1500V(DC)
(20 ± 10) °C Min. bending radius D<12: 3 x D
(20 ± 10) °C Min. bending radius D>12: 4 x D

Code:

PV1-F, H1Z2Z2-K

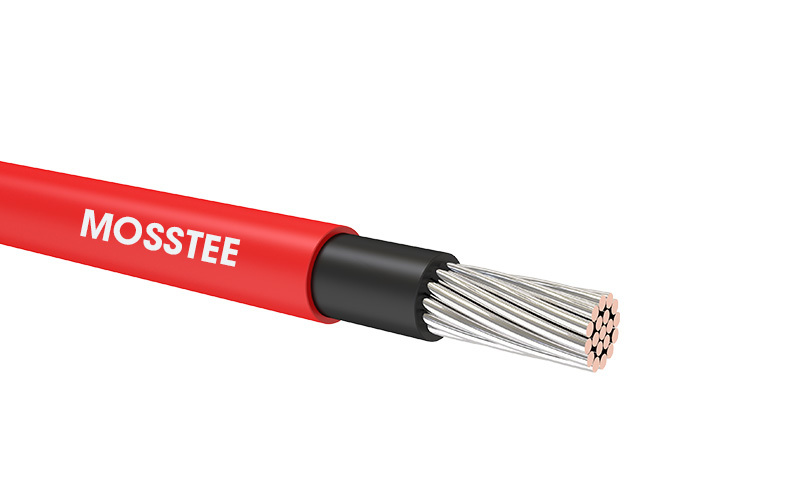

Construction:

Sheath: XLPO/XLPE
Armor: /
Filler: /
Insulation: HFFR/XLPE
Conductor: Fine stranded (Class 5) tinned copper/aluminum alloy conductor

Standards:

TUV 2PfG 1169, EN 50618, IEC 62930, UL 4703, TUV 2PfG 2642

Application:

They are designed for connections between various system elements such as solar panels and inverters in photovoltaic applications.

Technical Parameters

Cable Types	No.	P/N	Standard	Conductor Type	Cores	Insulation	Bedding & Filler	Sheath	Rated voltage
Solar Cables	1	PV1-F	2PfG 1169	Cu	1,2	XLPO	/	XLPO	AC: 0.6/1 kV DC: 1800 V
	2	H1Z2Z2-K	EN 50618						AC: 0.6/1 kV DC: 1500 V
	3	/	IEC 62930						AC: 0.6/1 kV DC: 1500 V
	4	/	UL 4703	Cu / AA8000		XLPE		XLPE	1000 V / 2000 V
	5	/	2PfG 2642	AA8000		XLPO		XLPO	AC: 0.6/1 kV DC: 1500 V
