XLPE INSULATED LV CABLES

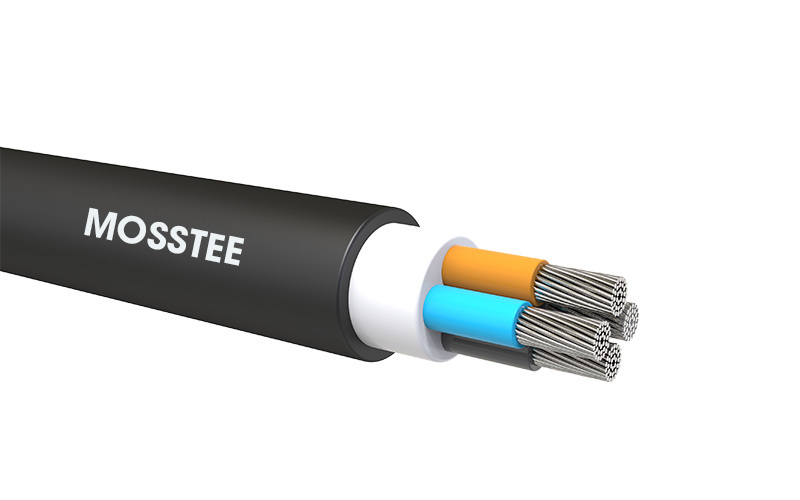

0.6/1 kV XLPE insulated, PVC sheathed, single core and multi cores cable

Category:

EN/VDE/UL Standard Cables

hbwong@mosstee.com

Inquire Now
Related Product

Product Introduction

Description:

0.6/1 kV XLPE insulated, PVC sheathed, single core and multi cores cable



Technical Data:

Max. Operating Temperature: 90°C
Short Circuit Temperature : 250°C (max.5s)
Voltage Rating: 0.6/1kV
Min. Bending Radius: 12×D



Code:

N2XY, NA2XY



Construction:

Sheath: XLPE
Armor: /
Filler: PVC
Insulation: PVC
Conductor: Solid (Class 1) or stranded (Class 2) copper/aluminum conductor



Standards:

HD 603 S1, IEC 60502-1, VDE 0276-603



Application:

These cables have a low dielectric loss, used in indoors and outdoors, in cable ducts, underground, in power or switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.



Technical Parameters

Cable Types

No.

P/N

Standard

Conductor Type

Cores

Insulation

Bedding & Filler

Sheath

Rated voltage

XLPE Insulated LV Cables

1

N2XY

HD 603 S1, IEC 60502-1, VDE 0276-603

Cu

1

XLPE

N/A

PVC

0.6/1 kV

2

N2XY

2,3,4,5

3

NA2XY

Al

1

4

NA2XY

2,3,4,5
