INSTALLATION CABLES

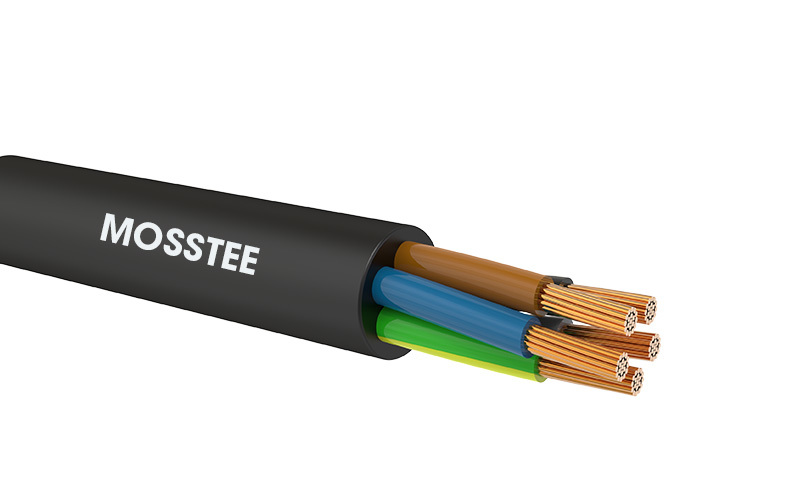

PVC Insulated, PVC sheathed, single core & multi cores cable with copper conductor

Category:

EN/VDE/UL Standard Cables

hbwong@mosstee.com

Inquire Now
Related Product

Product Introduction

Description:

PVC Insulated, PVC sheathed, single core & multi cores cable with copper conductor



Technical Data:

Max. Operating Temperature: 70°C or 90°C

Short Circuit Temperature : 160°C or 250°C (max.5s)

Voltage Rating: 300V/300V, 300V/500V, 450/750V



Code:

H05V-U&H05V-K, H07V-U&H07V-R&H07V-K, H05V2-U&H05V2-K, H07V2-U&H07V2-R&H07V2-K, NYM&NVV, H03VV-F, H05VV-F, H03V2V2-F, H05V2V2-F



Construction:

Sheath: PVC

Armor: /

Filler: PVC

Insulation: PVC

Conductor: Solid (Class 1) or stranded (Class 2, Class 5, Class 6) copper conductor



Standards:

IEC 60228, EN 50525-2-31, DIN VED 0250-204, IEC 60332-1



Application:

For household appliances (refrigerators, spin dryers, etc.) under medium mechanical stresses, also in damp and wet spaces.



Technical Parameters

Cable Types

No.

P/N

Standard

Conductor Type

Cores

Insulation

Bedding & Filler

Sheath

Rated voltage

Installation Cables

1

H05V-U & H05V-K

EN 50525-2-31

Cu

1

PVC

/

PVC

300/500 V

2

H07V-U & H07V-R & H07V-K

450/750 V

3

H05V2-U & H05V2-K

300/500 V

4

H07V2-U & H07V2-R & H07V2-K

450/750 V

5

NYM & NVV

DIN VDE 0250-204

2,3,4,5

PVC

300/500 V

6

H03VV-F

EN 50525-2-31

300/300 V

7

H05VV-F

300/500 V

8

H03V2V2-F

300/300 V

9

H05V2V2-F

300/500 V
